AC-to-DC Voltage Converter
- New
Are you a pilot or aircraft owner? Search our Dealer Locator to find our products near you.
- Delivers 800 watts of DC power to IFE systems, USB chargers, avionics, and other equipment
- 92% efficiency
- Remote On/Off
- No cooling required
- Input transient, temperature monitoring, short circuit and overload protection (up to 110% of rated load without damage)
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Input Voltage
115/200 VAC, 3 phase, 4 wire 360-800 Hz
Input Current
3.9 A Nominal
Output Voltage
28 VDC ± 0.4 VDC (adjustable)
Weight
3.8 lbs (1.72 kg)
Dimensions
7.8"L x 7.4"W x 2.0"H
Altitude
55,000 ft
Temperature
-67°F to +158°F (-55°C to +70°C)
Mating Connector Kit
MCI P/N 9020430-1
Case
Anodized aluminum extrusion, blue
Certification
FAA TSO-C71 pending
RTCA DO-160G pending

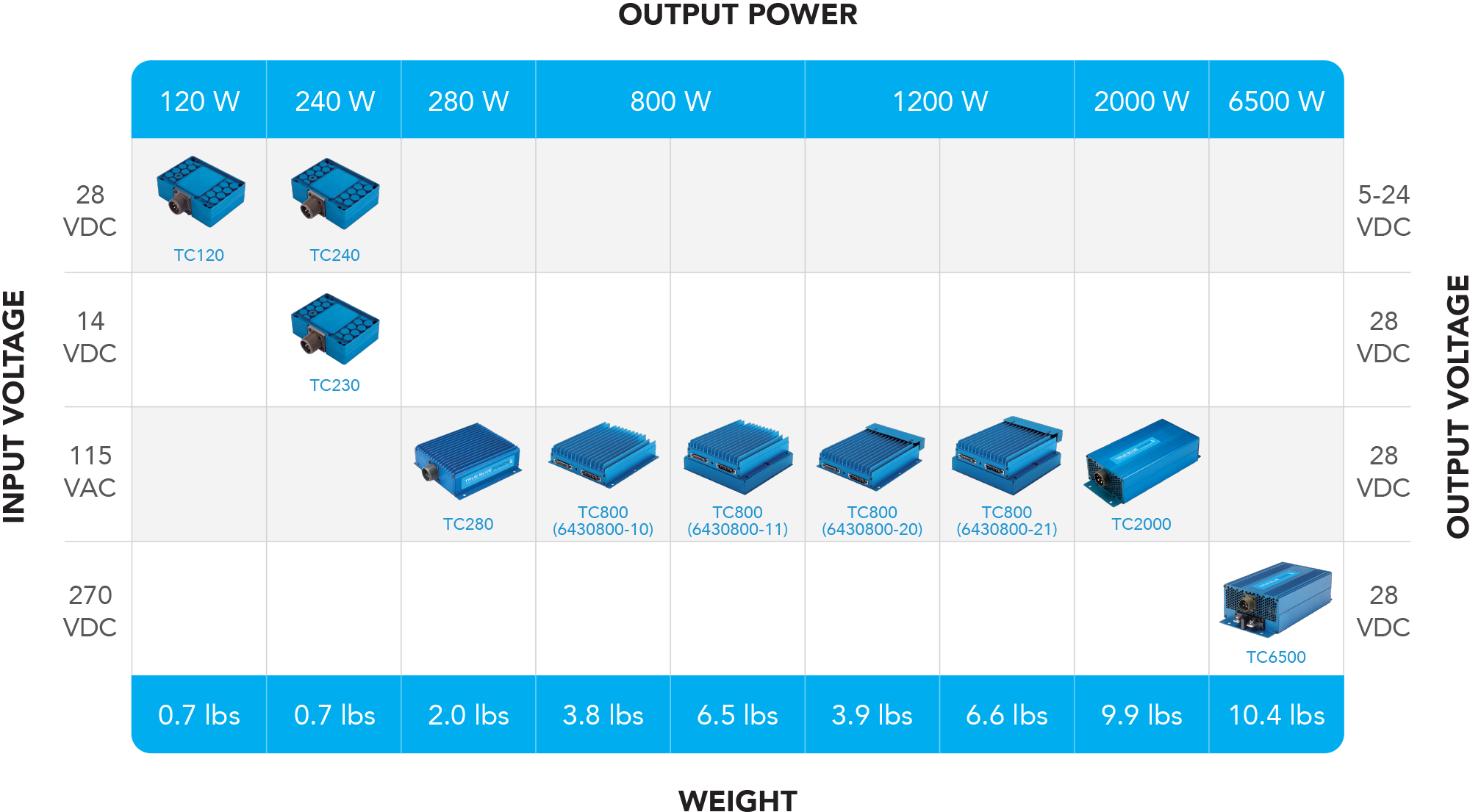

Configurations
| Part Number | Dimensions | Brushless Fan | Hold-up Module | Watts | Weight |
| 6430800-10 | 7.8"L x 7.4"W x 2.0"H | 800W | 3.8 lbs (1.72 kg) | ||
| 6430800-11 | 7.9"L x 7.7"W x 3.3"H | 800W | 6.5 lbs (2.95 kg) | ||
| 6430800-20 | 8.8"L x 7.4"W x 2.0"H | 1200W | 3.9 lbs (1.77 kg) | ||
| 6430800-21 | 8.9"L x 7.7"W x 3.3"H | 1200W | 6.6 lbs (3.00 kg) |
-
6430800-21AC-to-DC Voltage Converter
115 VAC, 360 – 800 Hz in, 28 VDC out, 1200 watts, brushless...
Mid-Continent Instruments and Avionics
True Blue Power
Please call for information -
6430800-11AC-to-DC Voltage Converter
115 VAC, 360 – 800 Hz in, 28 VDC out, 800 watts, 300...
Mid-Continent Instruments and Avionics
True Blue Power
Please call for information -
6430800-20AC-to-DC Voltage Converter
115 VAC, 360 – 800 Hz in, 28 VDC out, 1200 watts, brushless...
Mid-Continent Instruments and Avionics
True Blue Power
Please call for information
