Your custom design
in half the time, at half the cost

Flex® is a blank slate for designers, avionics, and systems engineers. It’s the only certified all-in-one controller and data converter with glass display functionality. Flex offers a custom behind-the-panel interface or a fast and easy replacement for legacy displays beyond economical repair. Flex receives ARINC 429, analog, discrete, frequency, temperature, absolute and differential pressure data to meet the specific needs of any pilot and any mission.

Expect Fast

Go from concept to cockpit in 30 days. Flex is ready and waiting for your custom design. Its base hardware and software are already TSO certified and RTCA qualified to Design Assurance Level A. Building your custom unit on this certified foundation speeds up your product development process and reduces your certification timeline by up to two years.

Expect Easy

Eliminate the complex product development process. With 18 programmable inputs and outputs, 2 pressure ports, and internal inertial sensors, the applications for Flex are virtually limitless, whether in or behind the panel. When using the unit's glass display functionality, you can easily customize the configuration, user interface and graphics. You’ll streamline integration with the standard, 2-inch size and keep life simple with a single, push-and-turn control knob, and field-upgradeable software.

Expect Affordable

Cut cost, not corners. Design a fully certified, custom data solution at a price you can afford. Flex NRE and certification costs are exceptionally low, starting at only $15K. Now, you can leverage leading-edge technology and a game-changing product development process to save up to $1M, per custom unit.

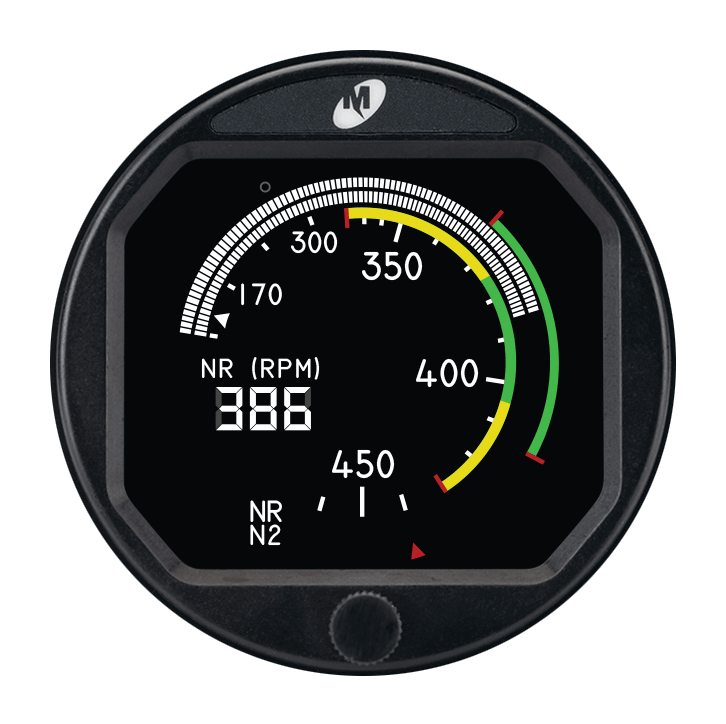

Example Custom Dual Tachometer

Custom Dual Tachometer

Example

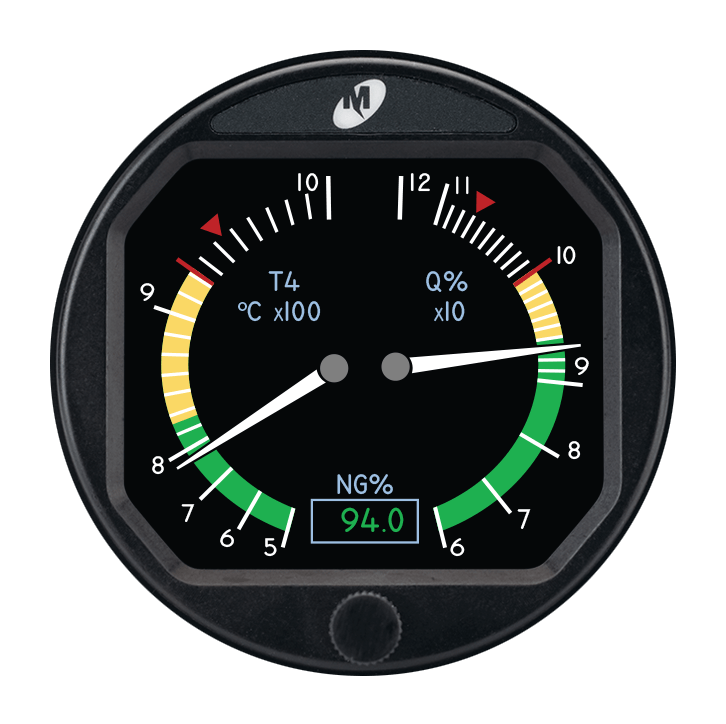

Example Custom Engine Monitor

Custom Engine Monitor

Example

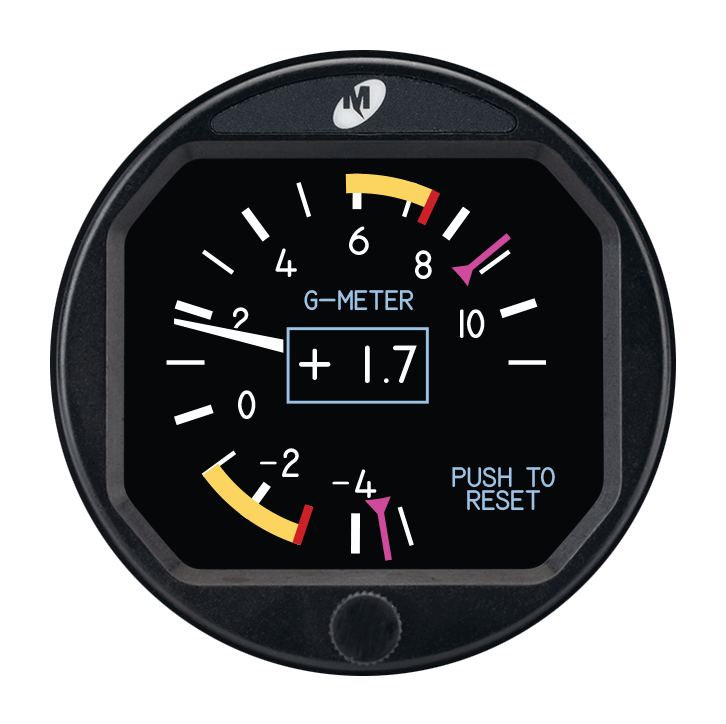

Example Custom G-Meter

Custom G-Meter

Example

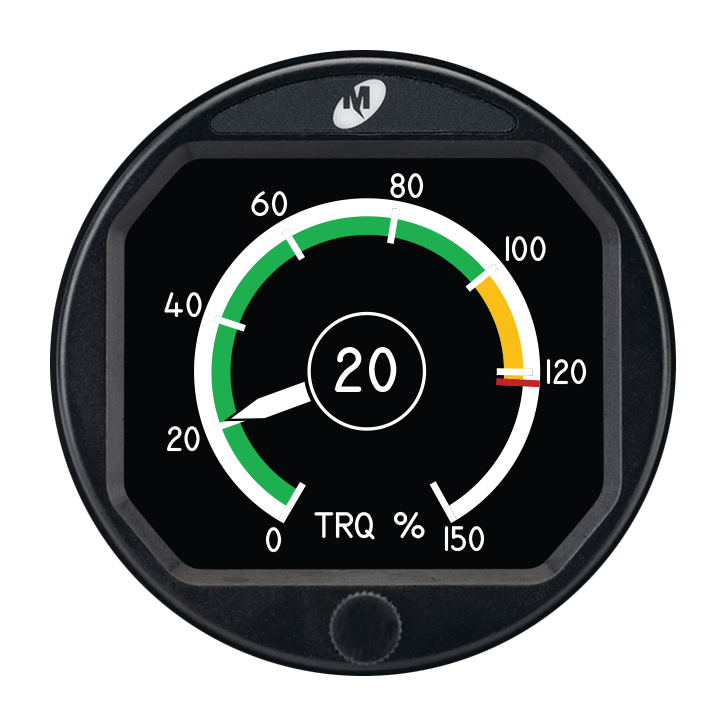

Example Custom Torque Indicator

Custom Torque Indicator

Example

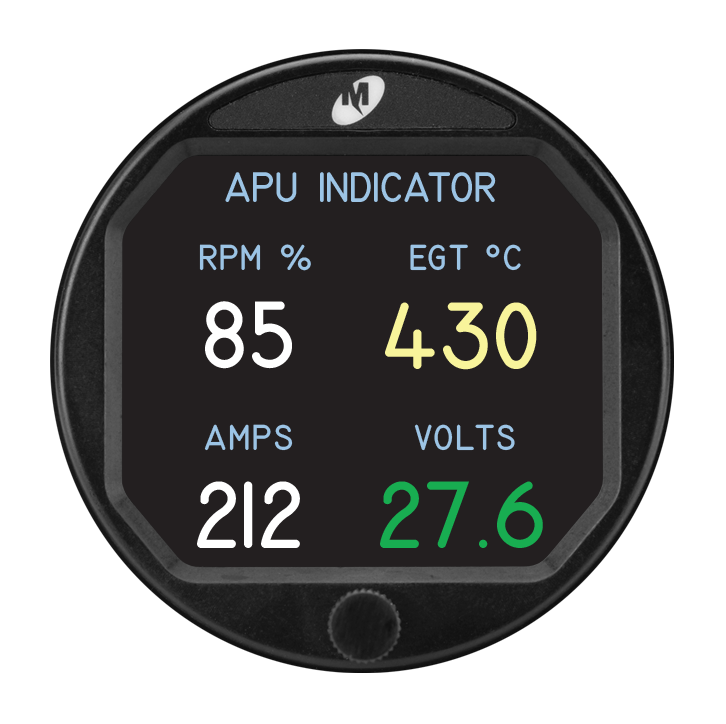

Example Custom APU Indicator

Custom APU Indicator

Example

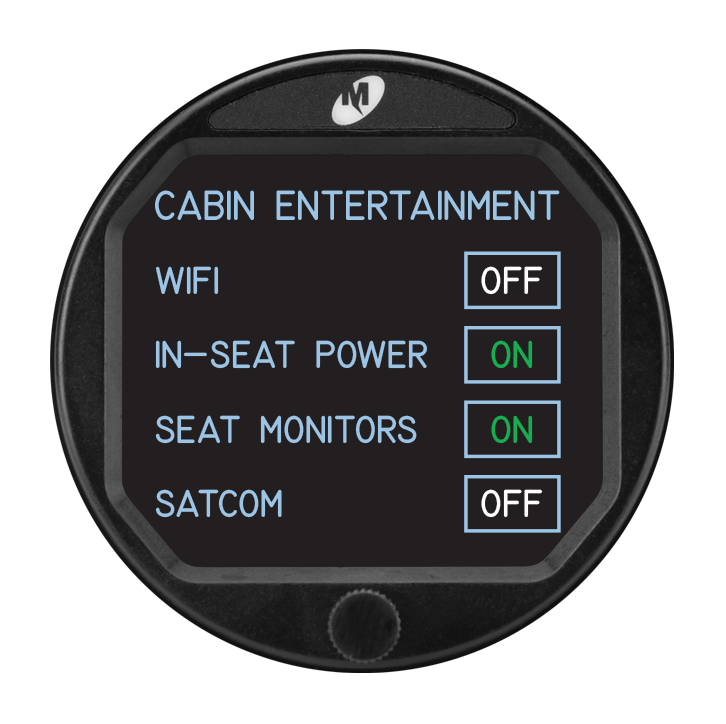

Example Custom Cabin Entertainment Indicator

Custom Cabin Entertainment Indicator

Example

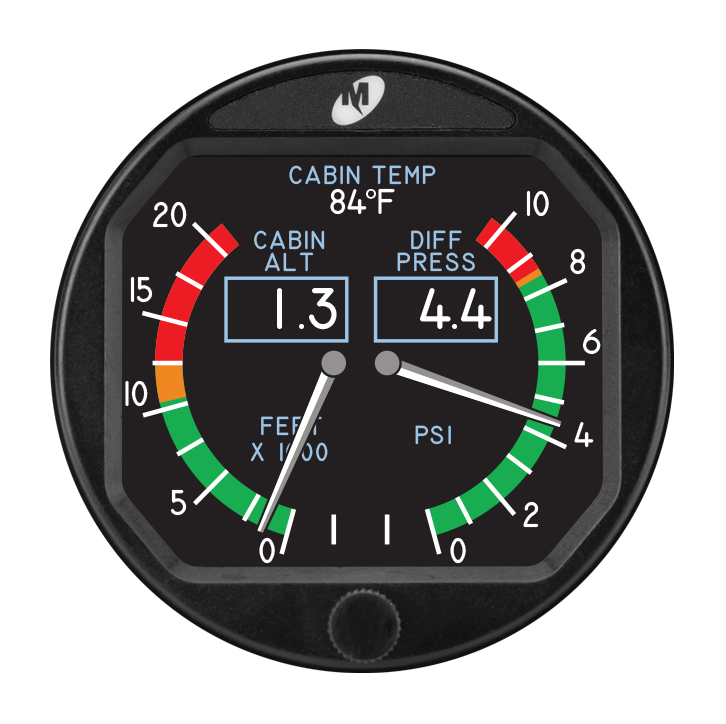

Example Custom Cabin Pressure Gauge A

Custom Cabin Pressure Gauge A

Example

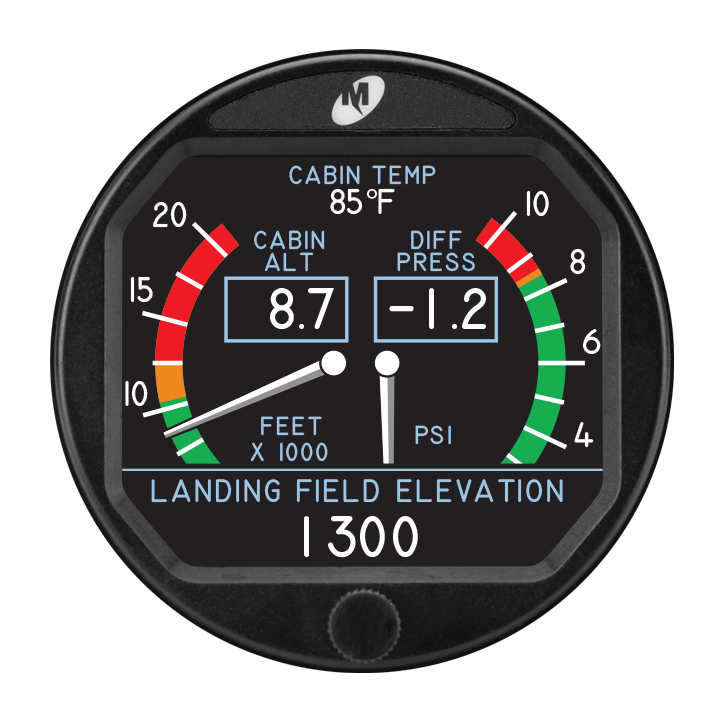

Example Custom Cabin Pressure Gauge B

Custom Cabin Pressure Gauge B

Example

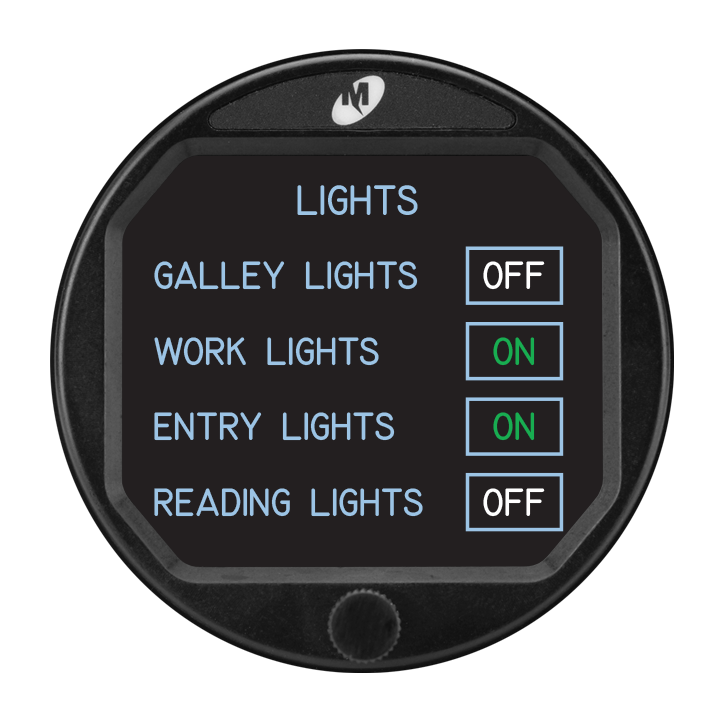

Example Custom Lights Indicator

Custom Lights Indicator

Example

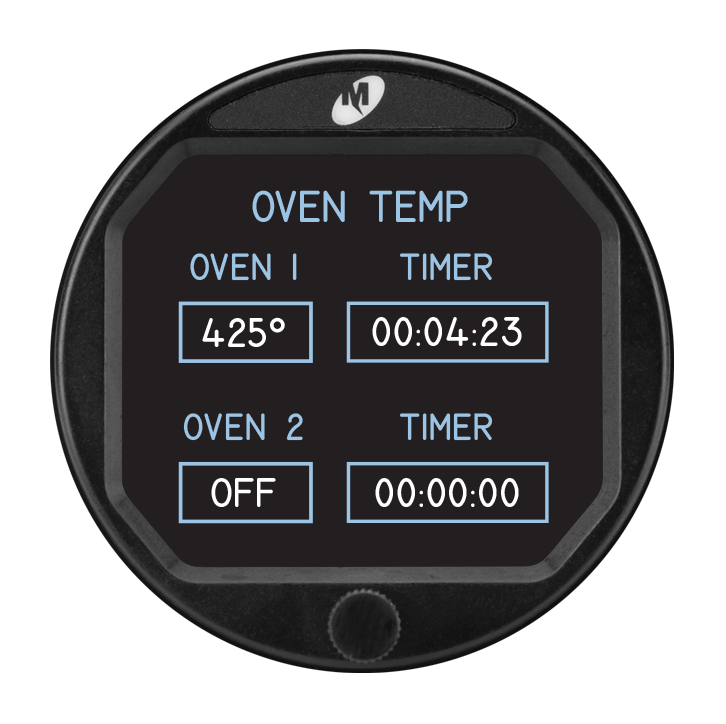

Example Custom Oven Temperature Indicator

Custom Oven Temperature Indicator

Example

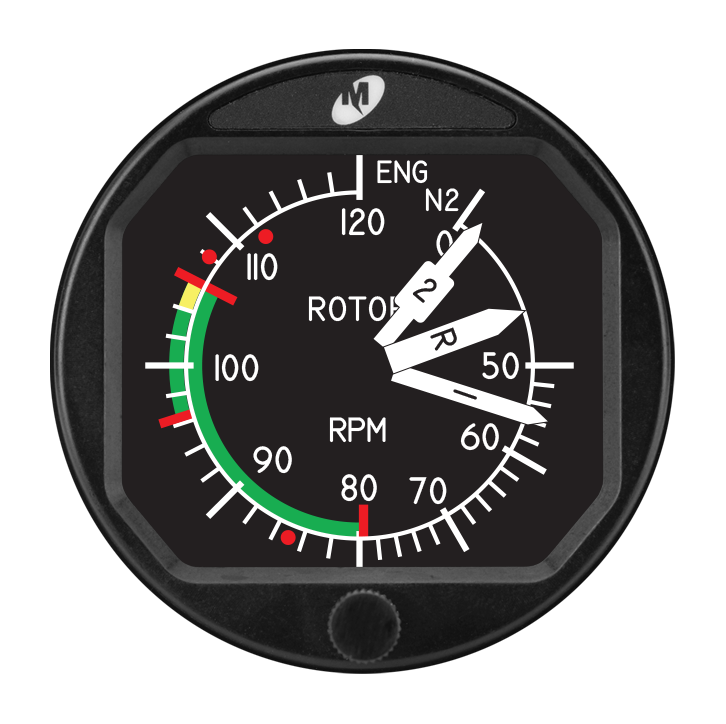

Example Custom Triple Indicator

Custom Triple Indicator

Example

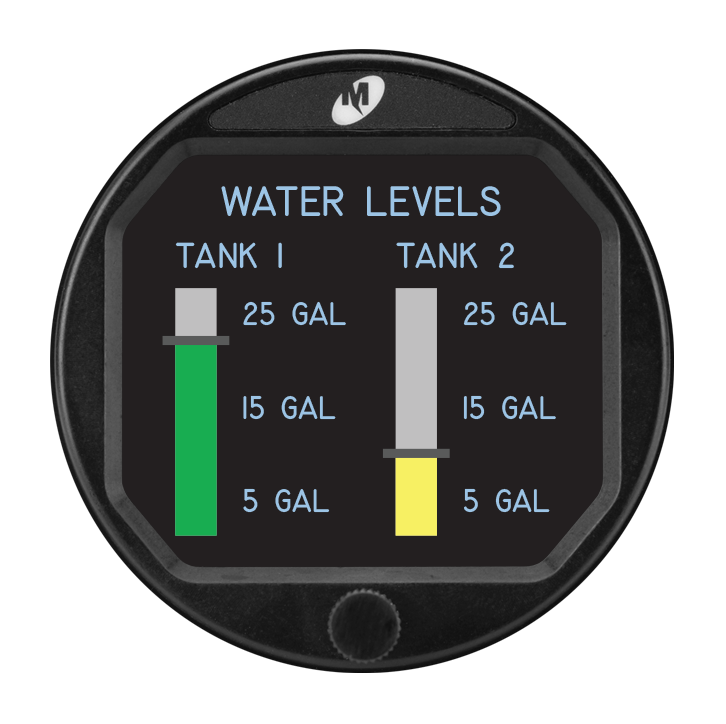

Example Custom Water Level Indicator

Custom Water Level Indicator

Example

Customizable configuration, user interface and graphics

Flex® Resources

Product Fliers and Brochures
Product Flier
Technical Documents
Installation Manual
Technical Drawing
Service Notifications
SB MD23-04
SB MD23-03
SB MD23-02
SB MD23-01

MD23 Series Software Update

Current Software Available for Download:
Version 1.1.2 (Released January 5, 2024)

Which FLEX® base hardware is right for you?

Flex Custom Function Display – 6420023-1

6420023-1

Model # MD23

Mid-Continent Instruments and Avionics

2-inch, Custom Programmable, Multi I/O, Frequency Inputs, LCD

Flex Custom Function Display – 6420023-2

6420023-2

Model # MD23

Mid-Continent Instruments and Avionics

2-inch, Custom Programmable, Multi I/O, Pitot and Static Ports, LCD

Flex Custom Function Display – 6420023-3

6420023-3

Model # MD23

Mid-Continent Instruments and Avionics

2-inch, Custom Programmable, Multi I/O, Solid-state MEMS Gyro and Accelerometer, LCD
