DC-to-AC Inverter
Are you a pilot or aircraft owner? Search our Dealer Locator to find our products near you.
Supply 1,200 watts of power at 60 Hz to a variety of cabin accessories, galley equipment, avionics, entertainment and aircraft systems with the TSO-certified TI1200 Inverter. Lighter and smaller than competing inverters, the TI1200 has the same connector and footprint as legacy designs, allowing for easy installation. The TI1200 power output is compatible with the North American standard for voltage and frequency.

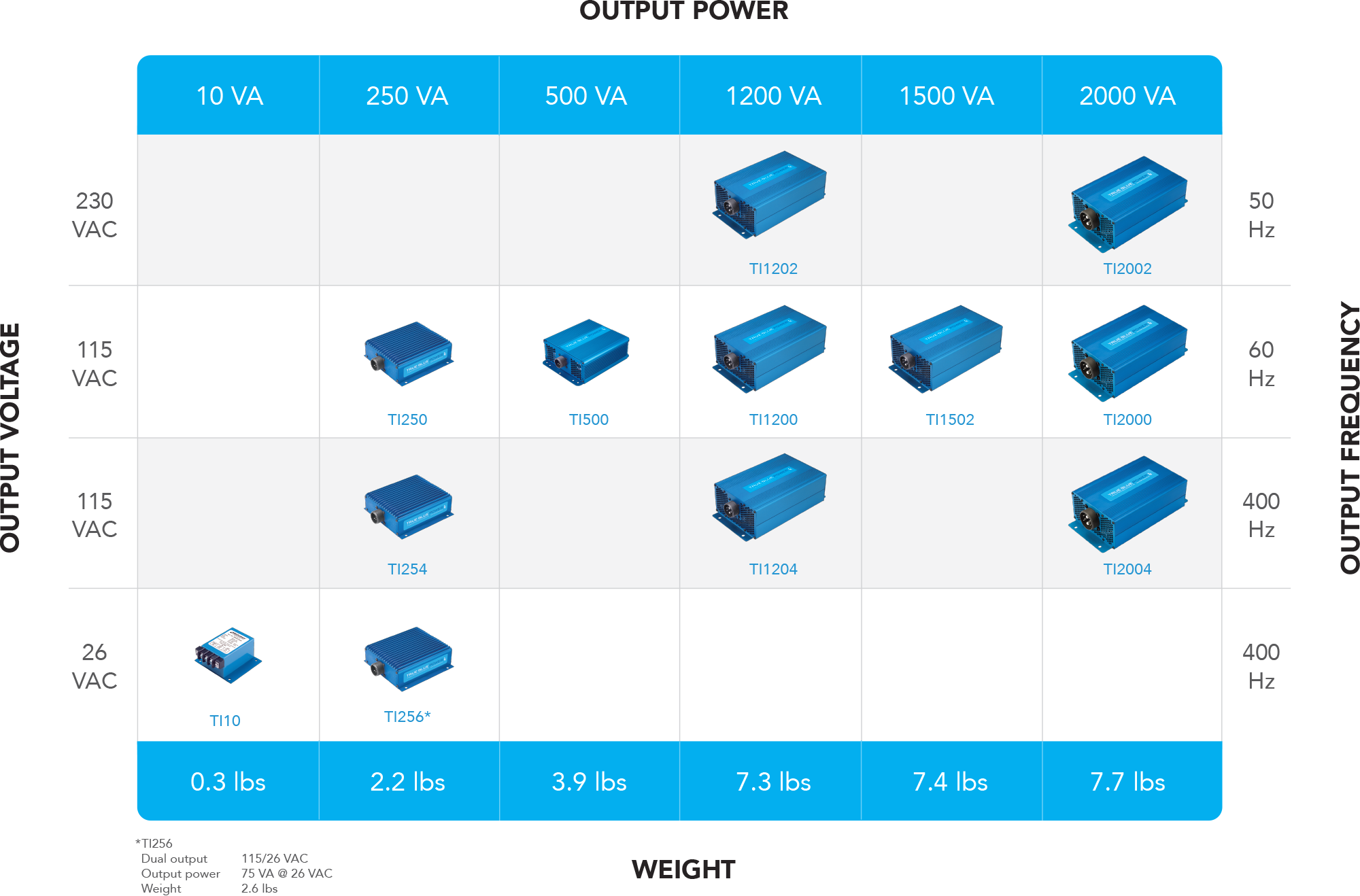

Inverter Comparison Chart
- Supplies 1200 watts of power to a variety of cabin accessories, galley equipment, avionics, entertainment and aircraft systems
- Ideal for use in special mission and VIP cabin configurations
- Lighter and smaller than competing inverters
- 88% efficiency
- Remote On/Off feature
- Input transient, overload and short-circuit protection (up to 150% of rated load without damage)
- FAA TSO-C73 certified, EASA ETSO-C73 certified, and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Input Voltage
20 – 36 VDC
Input Current
60A @ 28 VDC input
Output Voltage
115 VAC ± 3%
Output Power
1200 VA
Output Frequency
60 Hz ± 0.1%
Output Waveform
Single phase, pure sine wave, < 2.5% total harmonic distortion
Weight
7.3 lbs (3.3 kg)
Altitude
55,000 ft
Humidity
Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperature
-67°F to +158°F (-55°C to +70°C)
Integral Cooling
Dual, electronically-controlled brushless fans
Mating Connector
MCI P/N 9017235-1 connector
MCI P/N 9017235-2 cable clamp
Case
Anodized aluminum extrusion, blue
Certification
FAA TSO-C73 certified
EASA ETSO-C73 certified
RTCA DO-160G qualified
