2-inch
Digital Battery ACU

This digital Annunciation Control Unit monitors and displays True Blue Power® Gen5 Lithium-ion Battery parameters. It features smooth, high-resolution graphics and provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data.

Night Vision Imaging System (NVIS) compatible versions are available.

2-inch Digital Battery ACU

Benefits and Specifications

Clock Local Time and Flight Timer (available)
Size Fits standard 2-inch panel cutout
Battery Rechargeable, field-replaceable emergency battery (available)
Lightweight Weighs just 0.4 lbs
Simple user interface Single, push-and-turn control knob
Display Daylight readable LCD and smooth, high-resolution graphics
Lighting Manual, external lighting control or built-in photocell for automatic dimming
Night Vision Imaging System (NVIS) NVIS compatible units (available)
Software Field-upgradeable software via standard USB-A port
Certified TSO-certified hardware and software (Design Assurance Level A)
Made in the USA Designed and built in Wichita, Kansas, USA
Warranty Two-year limited warranty

Power Input 10–32 VDC
0.14A @ 28 VDC; 4 watts nominal
Data Input ARINC 429
Data Output ARINC 429
Battery Rechargeable coin cell (memory only)

Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A
Weight 0.4 lbs (0.17 kg)
Mounting Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Dimensions 2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm x 25.4mm)
Mating Connector P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
Certification FAA TSO certified to C2d, C106, C113b
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights U.S. Patent 11,048,389

Looking for more digital instruments?

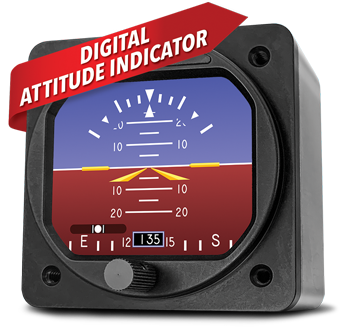

Digital Attitude Indicator

MD23-342

Model # MD23
2-inch Digital Attitude Indicator

Digital Airspeed Indicator

MD23-225

Model # MD23
2-inch Digital Airspeed Indicator

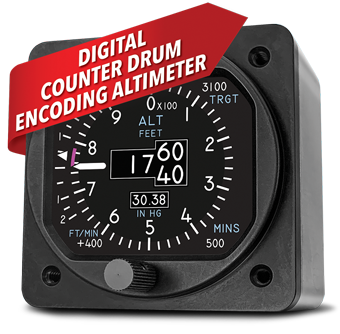

Digital Counter Drum Encoding Altimeter

MD23-215

Model # MD23
2-inch Digital Counter Drum Encoding Altimeter

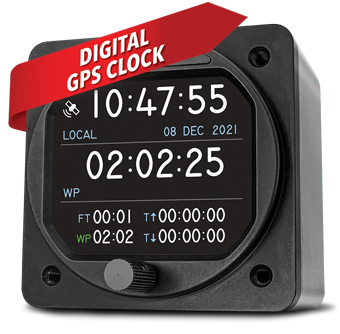

Digital GPS Clock
